Small concrete pump for sale in the Philippines is the most popular concrete pumping machine due to their lightweight, small occupation areas, and small investment cost. It is suitable for these small and medium construction projects that don’t need to pump a lot of concrete in one day. Investing in a small cement pump can not only meet the requirement of pumping concrete but also save initial investment capital. Selecting the right concrete pump for construction is also important. Check the types of small concrete pumps below.
Different Types of Small Concrete Pumps
To meet customers’ construction demands, there are different kinds of small concrete pumps for sale in Aimix, including trailer pump, mixer pump and boom pump.

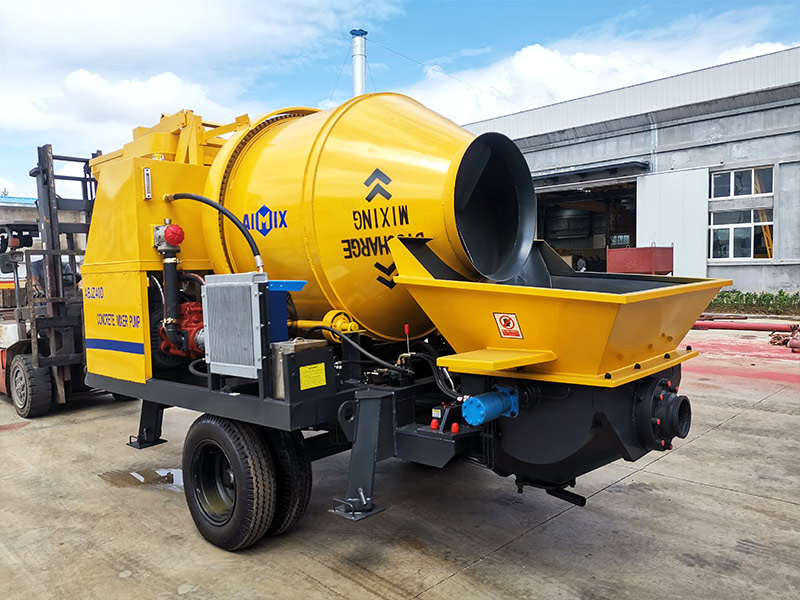

1. Small Concrete Mixer Pump
Small concrete mixer and pump has been widely applied in the construction industry in the Philippines. Among all Aimix concrete pumps, the concrete mixer pump for sale is the top exporting concrete pumping machine. In general, customers would like to buy one for rural and urban construction projects, such as foundations, houses, buildings, roads, harbors…… Besides, capacities of 30 and 40 m3/h concrete mixing pump can totally satisfy the demands of construction. In addition, the combination of concrete mixer and concrete pump can help save a lot of costs and improve working efficiency. In general, customers can get quick returns after investment. Aimix has manufactured diesel and electric mixer pumps for sale. Models are for choices: ABJZ30C, ABJZ40C, ABJZ30D, and ABJZ40D.
| Items | Units | ABJZ30C | ABJZ40C | ABJZ30D | ABJZ40D |
| Max. theo. concrete output(L./H) | M3/h | 30 | 40 | 30 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | |||
| Mixer rated discharge capacity | m3 | 0.35 | 0.45 | 0.35 | 0.45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | |||
| Distribution valve type | S Valve | ||||
| Concrete cylinder diameter×stroke | mm | Φ140×1000 | Φ180×1000 | Φ140×1000 | Φ180×1000 |
| Hopper capacity | L | 400 | |||
| Outlet diameter | mm | Φ150 | |||
| Electrical engineering power | KW | 37 | 82 | 37 | 45 |
| Rotate speed | r/min | 1480 | 2200 | 1480 | 1480 |
| Circuit type | Open circuit | Open circuit | |||
| Pumping system pressure | MPa | 26 | 32 | 26 | 26 |
| Mixing system pressure | MPa | 6-8 | 6 | 6-8 | 6-8 |
| Capacity of oil tank | L | 260 | 350 | 260 | 370 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/300 | 120/500 | 120/300 | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:10/20 | Slick/scree:40/50 | Slick/scree:10/20 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ100 | Φ125 | Φ100 | Φ125 |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 600x2300x3150 | 4500x1750x1600 | 4200x2300x3150 |
| Total weight | kg | 3000 | 4500 | 3000 | 4500 |
2. Trailer Concrete Pump
Compared with the above mixer pump, the small trailer concrete pump for sale in the Philippines is a pumping machine with only a pumping function. However, same as a small concrete mixer with pump, it also has the capacity of about 30 and 40 m3/h. The trailer concrete pumps for sale are mounted on chassis, moving with the assistance of tires and trailer dragging. Therefore, it is convenient for customers to move to construction sites after finishing one of the projects. Besides, the price of small concrete pump machine is lower. In Aimix, there are three models for selecting: ABT30C, ABT40C, and ABT40D. Choose one for your construction projects now!
| Items | Units | ABT40D | ABT40C |
| Max. theo. concrete output(L./H) | M3/h | 40 | 40/26 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10/7.6 |
| Distribution valve type | S Valve | S Valve | |
| Concrete cylinder diameter×stroke | mm | Φ180×1200 | Φ180×1200 |
| Hopper capacity x feeding height | L/mm | 400/1100 | 400/1100 |
| Outlet diameter | mm | Φ100 | Φ150 |
| Electrical engineering power | KW | 45 | 82 |
| Rotate speed | r/min | 1480 | 2100 |
| Pumping system pressure | MPa | 28 | 32 |
| Mixing system pressure | MPa | 8 | 44720 |
| Capacity of oil tank | L | 370 | 370 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:40/50 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 5000x1850x1700 |
| Total weight | kg | 3200 | 4500 |
3. Small Concrete Boom Pump
Small concrete pump truck is a larger concrete pumping machine. Because it is mounted on the truck. It pumps concrete mixture along with its long placing boom. Therefore, as for a small concrete boom pump for sale, it has a little short boom length. Due to its long and flexible boom, the boom pump is extremely useful for pumping in those tight spaces. To meet customers’ construction demands, Aimix can help customize the boom pump truck. You can choose 14m and 21m mini concrete pump truck for sale. Any special demands, contact us directly!
Application of Aimix Small Pumps In The Philippines
The Philippines, one of Aimix’s main sales markets, has imported countless sets of small concrete pumps sale from our company. After using it, a lot of customers have thought highly of the small portable concrete pumping machine because of its low failure rate, high working efficiency, excellent performance, and convenient movement. They also help take some pictures and videos of concrete pumps working on-site. Check some cases below!
1. ABJZ40C Diesel Concrete Mixer Pump Working Normally In Davao, Philippines
2. Aimix ABJZ40C Concrete Mixer With Pump For House Construction In Cavite, Philippines
3. ABT30C Trailer Pump Working For Rural Construction in Manila, Philippines
4. Concrete Pump Small Size ABT40C for Warehouse & Pool Construction in Dagupan, Philippines
Features Of Small Portable Concrete Pump
Aimix Group is one of the professional small concrete pump suppliers and manufacturers in China. Since our company was founded, we have been keeping the technological innovation in order to produce the satisfactory machines. Compared with others, ours has its own features.
- 1. S-valve: Diesel concrete mixer pump adopts an advanced s-valve to reverse with no congestion, which can transport mortar concrete. The S-valve can compensate for wear clearance automatically with good sealing performance.
- 2. Anti-pumping function: Aimix electric concrete pump has an anti-pumping function, which can timely troubleshoot the non-working pipes and stop work to wait for concrete in a short time.
- 3. Air-cooling system: The hydraulic oil cooling adopts an air-cooling system, which is convenient to use with a good cooling effect. Moreover, it is not easy to pollute the hydraulic oil.
- 4. Wireless control: It uses wireless remote control technology, improving the control distance. The product is easy to operate with a humanization design.
- 5. Anti-wearing concrete cylinder: The use of concrete cylinder increases the lifespan of mobile concrete pump and reduces the cost of maintenance.
Benefits of Buying Aimix Cement Pump in The Philippines
Among various manufacturers and suppliers in the Philippines market, why choose Aimix brand? What benefits can customers get from Aimix? Check the following tips that can convince you.
Good Quality Machine
Whether in the process of manufacturing or testing, our engineers will strictly inspect the smallest concrete pump. Because of the professional engineering team, we can own advanced technology and skillful experience. In addition, we would be always upgrading our line pump machine to meet customers’ requirements. More importantly, Aimix has CE and ISO certificates to ensure its quality and performance. Furthermore, quality machines can reduce the failure rate and save maintenance fees.
Affordable And Fair Price
Because of its obvious strengths, Aimix Group can provide you with a favorable and reasonable small cement pump price. First, we have our own factory. We can supply concrete pumps for sale directly from our factory. This can remove the additional charges from the middleman. Then, we can design a plan for your project to save your transportation and original cost. At last, our engineers can guide you on how to install and test run the machine and train your operators. This will save your training fees. Therefore, you can get a reasonable small concrete pump price.
Sincere And Thoughtful Service
We have built the professional sales team, production team, engineers team, and after-sale service team. Whether in the period of pre-sale, on-sale or after-sale, when you have any problems, just feel free to contact us for solutions free! You can check the comprehensive service details.
Scope Of Services During The Transaction
As above mentioned, Aimix is committed to creating a one-stop service platform, including pre-sale, on-sale, and after-sales service for customers. Check the scope of service below.
Pre-sale Service
During the process of pre-sale, Aimix has a professional online service team to answer your question. Just tell our online staff your requirements for concrete pump machine. Then our sales team will contact you as soon as possible. He would make confirmation on the exact demand for equipment, such as engine choice, capacity, destination, kind of construction, local voltage, etc. Last He would send you a detailed quotation, including total costs, payment methods, and machine details.
On-sale Service
If you decide to buy an Aimix machine, the transaction starts. We will sign a contract between us. The contract includes proof of purchase, purchase items, and other details. If agreeing, then it is time for you to pay for the machine to the designated Aimix company bank account according to the contract. After payment, we will make production and delivery as scheduled. Later we would arrange to export the machine to Philippines customers. During the period, we will regularly inform customers about the production progress, debugging status, and delivery details until they received the machine.
After-sale Service
After the machine arrived at the port, the customers can come to pick it up. Before putting it into use, it is necessary to test run to make sure that the status of the concrete pump small portable is good or not. In addition, we would send the instructions and operation videos to customers. During working, if there is something wrong with the stationary concrete pump equipment, contact us timely for solutions. In general, our engineers in the Philippines would guide and help solve it online. If necessary, he can come on-site to check and maintain the machine. Besides, core components can be exchanged under one year warranty. Aimix has established an office in the local city of Manila. Any problems, welcome to contact us!
All in all, customers in the Philippines don’t worry about the issue of service. If you intend to buy a concrete pump, contact us now! Then our sales will respond to you as soon as possible!
