Diesel ABJZ40C Concrete Mixer Pump Working in Philippines

Concrete Pump For Sale In Philippines

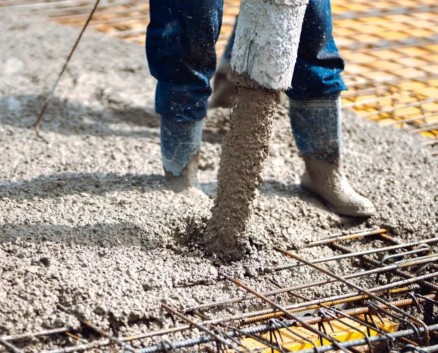

A concrete pump is a kind of concrete machine that is used to pump the concrete. It is most suitable for the houses and commercial buildings under 30 floors, small bridges, water conservancy, power, and communication for which the sites are scattered and on-site mixing is required.

In recent years, with the development of the construction industry in the Philippines, more and more clients want to buy concrete pumping machine. Our concrete pumps have been exported to more than 100 units in the Philippines, and we have established a certain market foundation. If you need to buy pumps, please contact us.

Our Concrete Pump working video in the philippines

More pictures of our concrete pumps in different cities in the Philippines

ABJZ40C Concrete Mixing Pump With Green Color Is Working In Cavite, Philippines
ABJZ40C Is Working In Cavite, Philippines
ABJZ40C In Lungsodng Laoag Located In North Of Manila Philippines
ABJZ40C In Lungsodng Laoag Located In North Of Manila Philippines
ABJZ40C IN Davao, Philippines
ABJZ40Cin Davao, Philippines

Our concrete pumps are mainly divided into 3 major types, concrete mixer with pump, trailer concrete pump, and concrete boom pump, Here are details:

concrete mixer with pump

The concrete mixer pump mainly combines the conveying function of the traditional concrete pump and the mixing function of the mixer, which simplifies the construction process and can easily and efficiently mix the concrete to the construction site. Our AIMIX concrete mixing pumps are divided into diesel and electric.

Diesel concrete mixing pump: the diesel engine is used to provide power to the equipment, which avoids the inability of the machine to be used normally in some remote areas due to insufficient power. Our hot-selling diesel mixing pump models are ABZJ30C and ABJZ40C:

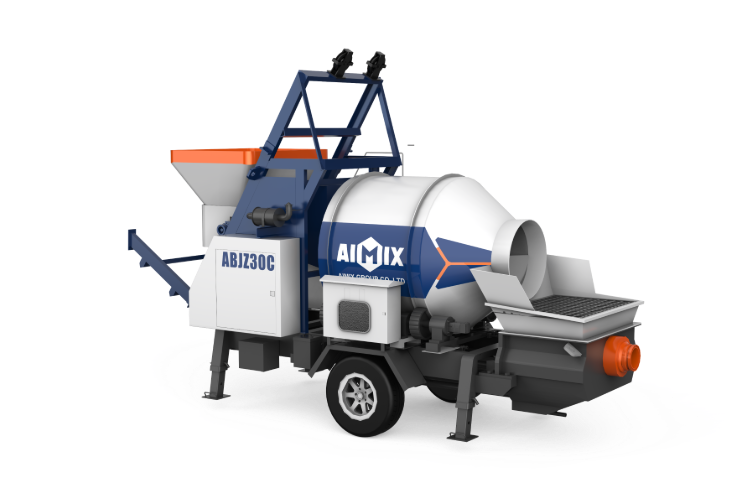

ABJZ30C
ABJZ30C
Max. theo. concrete output(L./H) M3/h 30
Mixer rated feed capacity m3 0.56
Mixer rated discharge capacity m3 0.35
Max.concrete pumping pressure(H./L.) MPa 10
Distribution valve type S  Valve
Concrete cylinder diameter×stroke mm Φ140×1000
Hopper capacity L 400
Outlet diameter mm Φ150
Winding motor power KW Hydraulic  motor
Stir the motorPower KW Hydraulic  motor
Water pump motor powe KW Hydraulic  motor
Diesel engine model
Electrical engineering power KW 37
Rotate speed r/min 1480
Circuit type Open circuit
Pumping system pressure MPa 26
Mixing system pressure MPa 6-8
Capacity of oil tank L 260

ABJZ40C
ABJZ40C
Max. theo. concrete output(L./H) M3/h 40
Mixer rated feed capacity m3 0.56
Mixer rated discharge capacity m3 0.45
Max.concrete pumping pressure(H./L.) MPa 10
Distribution valve type S  Valve
Concrete cylinder diameter×stroke mm Φ180×1000
Hopper capacity L 400
Outlet diameter mm Φ150
Winding motor power KW Hydraulic  motor
Stir the motorPower KW Hydraulic  motor
Water pump motor powe KW Hydraulic  motor
Diesel engine model Weichai
Electrical engineering power KW 82
Rotate speed r/min 2200
Circuit type Open circuit
Pumping system pressure MPa 32
Mixing system pressure MPa 6
Capacity of oil tank L 350


Electric concrete mixer and pump: The power grid is used to drive the machine to operate, and there is no need to consume a large amount of diesel and other raw materials. The consumption cost is much lower than that of the diesel mixer pump, but the power requirements are relatively high. Not only a high-power transformer but also a stable Voltage, therefore, for some regions with mature electricity, you can choose an electric concrete mixer pump. Our popular electric models are: ABZJ30D ABJZ40D

ABJZ30D electric concrete pump machine
ABJZ30D
Max. theo. concrete output(L./H) M3/h 30
Mixer rated feed capacity m3 0.56
Mixer rated discharge capacity m3 0.35
Max.concrete pumping pressure(H./L.) MPa 10
Distribution valve type S  Valve
Concrete cylinder diameter×stroke mm Φ140×1000
Hopper capacity L 400
Outlet diameter mm Φ150
Winding motor power KW 5.5
Stir the motorPower KW 4.5
Water pump motor powe KW 0.55
Diesel engine model
Electrical engineering power KW 37
Rotate speed r/min 1480
Circuit type Open circuit
Pumping system pressure MPa 26
Mixing system pressure MPa 6-8
Capacity of oil tank L 260

ABJZ40D electric concrete mixer with pump
ABJZ40D
Max. theo. concrete output(L./H) M3/h 40
Mixer rated feed capacity m3 0.56
Mixer rated discharge capacity m3 0.45
Max.concrete pumping pressure(H./L.) MPa 10
Distribution valve type S  Valve
Concrete cylinder diameter×stroke mm Φ180×1000
Hopper capacity L 400
Outlet diameter mm Φ150
Winding motor power KW 5.5
Stir the motorPower KW 4.5
Water pump motor powe KW 0.55
Diesel engine model
Electrical engineering power KW 45
Rotate speed r/min 1480
Circuit type Open circuit
Pumping system pressure MPa 26
Mixing system pressure MPa 6-8
Capacity of oil tank L 370


How to choose the right concrete mixer pumps in the Philippines? Electric or diesel?

Due to the different terrain and environmental and power conditions in different regions of the Philippines, we must consider these factors when we choose diesel or electric power. For example, does the construction site need to be constantly switched? Does the size of the selected concrete pump meet Need for a construction site? Is there stable electricity support in the local area? The running cost of the project, etc. Welcome to consult us to know more about the selection requirements of the concrete mixing pump. Our professional product managers and after-sales engineers will provide you with professional guidance:

2018 07 ABJZ40C Concrete Mixer Pump in Manila, Philippines
ABJZ40C concrete mixer pump in Manila, Philippines in July 2018

2018 07 ABJZ40C Concrete Mixer Pump in Manila, Philippines2
2018 07 ABJZ40C Concrete Mixer Pump in Manila, Philippines2

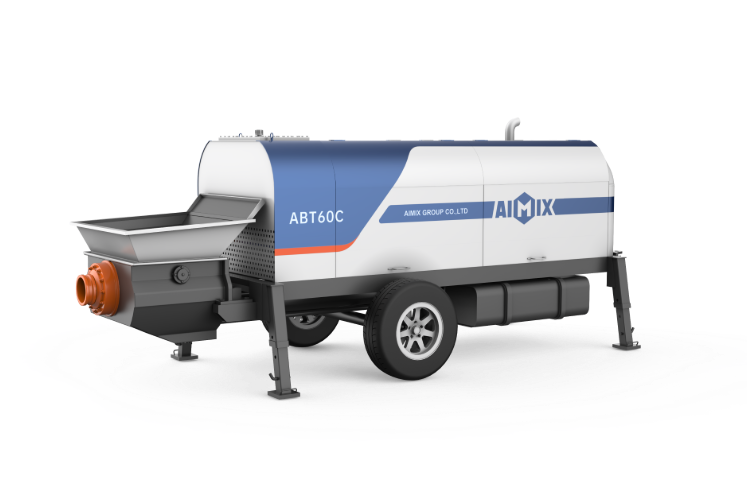

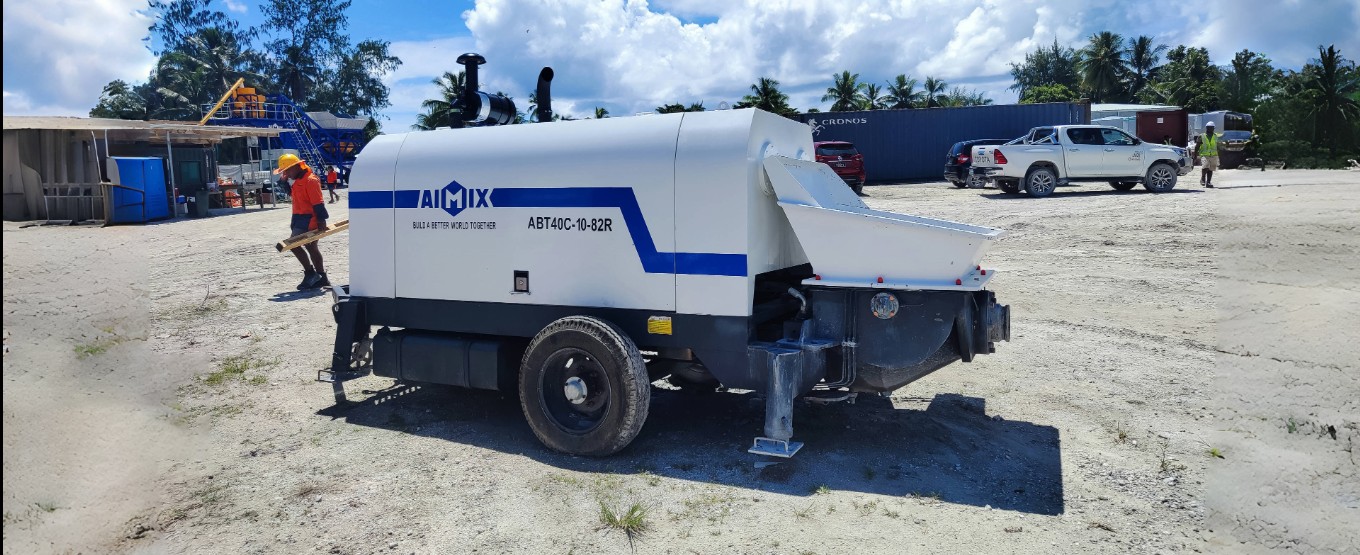

Trailer Concrete Pump

ABT series concrete pump can transport concrete with an aggregate diameter of 4cm and above, with displacement ranging from 40m3 / h to 100m3 / h, mortar conveying, floor heating construction, tunnel, and underground construction, etc. Hot models – ABT40C and ABT40D:

ABT40C
ABT40C
Max. theo. concrete output(L./H) M3/h 40/26
Max.concrete pumping pressure(H./L.) MPa 10/7.6
Distribution valve type S  Valve
Concrete cylinder diameter×stroke mm Φ180×1200
Hopper capacity x feeding height L/mm 400/1100
Outlet diameter mm Φ150
Diesel engine model Weifang Delier 6105ZB
Electrical engineering power KW 82
Rotate speed r/min 2100
Circuit type Open circuit
Pumping system pressure MPa 32
Mixing system pressure MPa 6-8
Capacity of oil tank L 370


ABT40D
ABT40D
Max. theo. concrete output(L./H) M3/h 40
Max.concrete pumping pressure(H./L.) MPa 10
Distribution valve type   S  Valve
Concrete cylinder diameter×stroke mm Φ180×1200
Hopper capacity x feeding height L/mm 400/1100
Outlet diameter mm Φ100
Electrical engineering power KW 45
Rotate speed r/min 1480
Circuit type   Open circuit
Pumping system pressure MPa 28
Mixing system pressure MPa 8
Capacity of oil tank L 370
Max. Theoretical Vertical/Horizontal Conveying Distance m 120/500

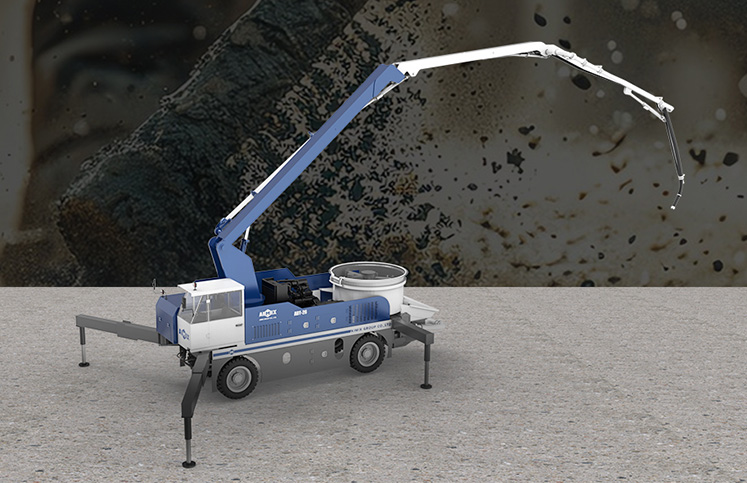

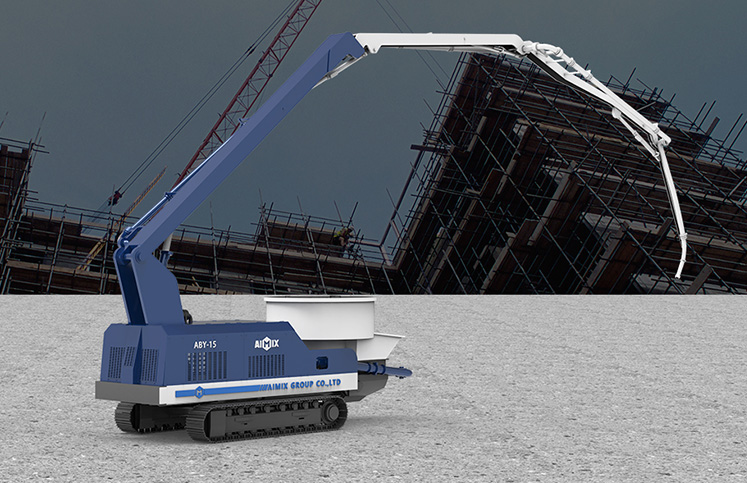

Small Concrete Boom Pump

The small boom pump is a high-efficiency concrete conveying equipment integrating driving, pumping concrete and cloth. The boom is flexible and fast, the outriggers occupy a small space, the whole vehicle is easy to move, flexible and flexible, stable and safe. The main pumping distance for House units, Buildings can reach (15M, 17M & 21M.36M,52M,100M), Concrete line pump hot model-ABTB40R-14:

ABTB40R-14 concrete boom pump
ABTB40R-14 concrete boom pump

ABTB40R-14 boom concrete pump specification:

Items Units Parameters
ABTB40R-14
Whole performance of machine



Max. theo. concrete output m3/h 40
Max.concrete pumping pressure MPa 10
Distribution valve type   S Valve
Concrete cylinder diameter×stroke mm Ф180×1300
Hopper capacity L 500
Outlet diameter mm Ф150
Vertical height of boom m 15.4
Radius of place concrete m 1316
Big arm length m 6.5
Big arm elevation angle ° 90
Small arm length m 6.5
Small arm elevation angle ° 235
Concrete pipe m 125*3
Tower rotation angle ° 200
Leg open width m 5.5
Distribution rod direction control   Manually
Power system Diesel engine model   Weichai WP4G110E220
Engine power Kw 82
Rotate speed RPM 2200
Travelling diesel engine   Changchai L32
Travelling diesel engine power   32HP
Tyre   4*8.25*16
Other parameters Max. aggregate diameter mm 30
Inside diameter of delivering pipe mm Ф100
Dimensions:length×width×height mm 7500x2200x2920
Total weight kg 6500

Factors affecting the price of the concrete pump

The concrete mix pump price is a vital factor that decides whether most customers buy the concrete pumping machine or not. There are many aspects that can affect the concrete pumping machine price. You can pick up a right cement pump machine to save your purchasing cost according to the following tips.

First of all, you should refer to the specification of the concrete pump, Different models, the concrete pump capacity per hour is different. you can get their parameter tables of concrete pump. You need to learn the parameters in detail, such as theoretical concrete output, mixer rated deed capacity, mixer rated discharge capacity, maximal concrete pumping pressure, theoretical vertical and horizontal conveying distance, etc. And then choose a suitable model depending on your construction site and real needs.

Second,Choose a good reputable concrete pump manufacturer. There are two reasons for choosing a reliable manufacturer. One is that you can get a good quality trailer pumps concrete. A reputable manufacturer will receive much high praise from their customers. That means you can trust their strengths. Another is that you can enjoy their sincere after-sale service. In particular, in the Philippines, when choosing concrete pump suppliers, in addition to the strength inspection, you should also pay attention to whether they can provide complete after-sales installation and maintenance services. We have established a fixed office in the Philippines and have a high reputation among the old customers in the Philippines. Welcome to visit our office for detailed product information and choose our products!

The type of concrete pump is also a factor that affects the price. For example, If you just need to pump the concrete, you may consider the concrete trailer pump; If you need to not only mix the concrete but also pump it, concrete mixer with pump is a good choice for you; If you have a project that needs to pump concrete to a great height, a concrete boom pump may be an ideal choice for you. In addition, the cement pump for sale has two types of driven engine, diesel engine, and an electric engine. You need to pick up a suitable type pump and right engine pump according to your needs.

Consider the types of pump machine. If you need to not only mix the concrete but also pump it, concrete mixer with pump is a good choice for you. If you just need to pump the concrete, you may consider the concrete trailer pump. If you have a project that needs to pump concrete to a great height, a concrete boom pump may be an ideal choice for you. In addition, the cement pump for sale has two types of driven engine, diesel engine, and electric engine. You need to pick up a suitable type pump and right engine pump according to your needs.

Our concrete pump spare parts and details

The components of cement pumping machine have hopper, s valve, oil tank, engine motor, power switch, control panel, hydraulic oil pump and so on. Each component has its own function and feature.

the structural details of our concrete pump parts
the structural details of our concrete pump spare parts

How Does A Concrete Pump Work?

The pump machine for the concrete working principle is simple. Understanding the concrete cement pump working principle can help you operate the machine better.

The pump drives the oil entering into the main cylinder through the hydraulic system. When one piston in the pumping cylinder extends, the hydraulic system makes the other piston rebound through pressurized oil in the sealing pipeline. The concrete conveying piston connected to the main cylinder piston rod is self-absorption in the conveying cylinder. The concrete in the hopper is sucked into the conveying cylinder through the suction port of the slide valve under the effect of atmospheric pressure and the mixing blades.

At the same time, under the action of oil pressure, the other main cylinder promotes the extension of the piston rod and pushes the piston to convey concrete in the cylinder through pressure, the d then the concrete enters the pipelines through Y pipeline in the slide valve outlet. After completion of the above procedures, the system changes the direction to press oil into another main cylinder, completing another different delivery process. So repeatedly, concrete in the hopper can be continuously delivered to the Y pipeline. Through the pipeline, the concrete can reach a working point to complete the pumping work.

Choose a professional Concrete Pump Manufacturer and supplier in Philippines

Before you purchase the cement pump machine, you should pick up the reliable concrete pumping equipment suppliers carefully. A good concrete cement pump supplier can provide you with good machine and thoughtful service. Since our company was founded in 1982, we have been accumulated rich production experience. Keeping the principle of technological innovation, our Aimix Group has gotten many patents. We believe that you can satisfy our machine and our price. If you have additional requirements, we can also customize the beton concrete pumping machine for your construction projects.

Our Aimix Group Professional Salesman Team

Philippines salesman team
Philippines salesman team

Whether you know our company and our concrete pumping equipment from the Internet or by the introduction of others, our special salesman team will introduce our machine carefully for you. They will give you some professional advice about how to get the right concrete cement pumping equipment for sale. Here are good news for you! We have our office in Philippines. There are some of our salesmen working there. It is more convenient for customers in Philippines to contact us. Besides the Philippines, we have our office in other countries, including Pakistan, Lahore, Sri Lanka, Islamabad. You have a choice of proximity.

Our Aimix Group Professional Engineers and after-sales service team

visit-our-clients
our after-sale service team visits our customer

Our professional service team includes our engineers team, production team, transportation team, and after-sale service team. Different team is responsible for different process in order to ensure the quality of our pump machine for sale. Our production team is mainly responsible for producing high-quality concrete cement pump machine by adopting advanced technology and international famous component brands. Our engineer’s team mainly works for the research and development of machine. Meanwhile, they can guide our customers on how to install and debug our machines. Whenever you meet the problems, our after-sale service team will spare no efforts to help you deal with these problems.

To sum up, if you plan to invest a cement pumping equipment, and if you are looking for a trustworthy concrete mix pump supplier, please don’t hesitate to contact us.
