Hot-sale ABT40C Diesel Concrete Pump in August

Mobile Concrete Pump For Sale

Mobile concrete pump for sale in the Philippines is used for continuously delivering mixed concrete to the construction sites, such as buildings, bridges, and tunnel construction projects. With movable tires, it is convenient to move among different construction projects, which can greatly save transportation time and reduce the construction period. That’s also the important reason why customers prefer to buy it. In Aimix Group, there are two types of mobile concrete pumps. Please check them below.

Mobile concrete pump for sale in the Philippines

Two Types of Mobile Concrete Pumps for Sale in Aimix

Aimix has manufactured two kinds of concrete pumps for sale to meet different customers’ construction demands. One is the mobile trailer pump for sale, the other one is the mobile concrete mixer pump for sale. Both of them are widely applied for various types of rural and urban construction projects. Please check the models and cases below.

Mobile Concrete Mixer Pump

Mobile concrete mixer with pump is multifunctional equipment that has integrated functions of concrete mixing and pumping together. Thus, it can mix the materials firstly in the mixing drum that is prepared according to proportion and then pump the mixed concrete to the construction sites. Aimix mobile concrete mixer pump for sale has the advantages of good mixing quality, high working efficiency, convenient movement, and stable performance. According to the engine, we have divided it into diesel concrete mixer pump and electric mobile concrete mixing pump. Capacities of them are about 30 and 40 m3/h. Accordingly, the models of mixer pumps for sale include ABJZ30C, ABJZ40C, ABJZ30D, and ABJZ40D. Check the models and specifications below.

ABJZ30C Diesel Mobile Concrete Pump and Mixer Philippines
ABJZ30C Diesel Mobile Concrete Pump and Mixer

Max. theo. concrete output(L./H) M3/h 30
Mixer rated feed capacity m3 0.56
Mixer rated discharge capacity m3 0.35
Max.concrete pumping pressure(H./L.) MPa 10
Distribution valve type S  Valve
Concrete cylinder diameter×stroke mm Φ140×1000
Hopper capacity L 400
Outlet diameter mm Φ150
Diesel engine model Weichai
Electrical engineering power KW 37
Rotate speed r/min 1480
Circuit type Open circuit
Pumping system pressure MPa 26
Mixing system pressure MPa 6-8
Capacity of oil tank L 260
Max. Theoretical Vertical/Horizontal Conveying Distance m 120/300
Max. aggregate diameter mm Slick/scree:10/20
Inside diameter of delivering pipe mm Φ100
Dimensions:length×width×height mm 4500x1750x1600
Total weight kg 3000
ABJZ40C Diesel Mobile Concrete Mixer and Pump Philippines
ABJZ40C Diesel Mobile Concrete Mixer and Pump

Max. theo. concrete output(L./H) M3/h 40
Mixer rated feed capacity m3 0.56
Mixer rated discharge capacity m3 0.45
Max.concrete pumping pressure(H./L.) MPa 10
Distribution valve type S  Valve
Concrete cylinder diameter×stroke mm Φ180×1000
Hopper capacity L 400
Outlet diameter mm Φ150
Diesel engine model Weichai
Electrical engineering power KW 82
Rotate speed r/min 2200
Circuit type Open circuit
Pumping system pressure MPa 32
Mixing system pressure MPa 6
Capacity of oil tank L 350
Max. Theoretical Vertical/Horizontal Conveying Distance m 120/500
Max. aggregate diameter mm Slick/scree:40/50
Inside diameter of delivering pipe mm Φ125
Dimensions:length×width×height mm 600x2300x3150
Total weight kg 4500

ABJZ30D Electric Mobile Concrete Mixing Pump Philippnes
ABJZ30D Electric Mobile Concrete Mixing Pump

Max. theo. concrete output(L./H) M3/h 30
Mixer rated feed capacity m3 0.56
Mixer rated discharge capacity m3 0.35
Max.concrete pumping pressure(H./L.) MPa 10
Distribution valve type S  Valve
Concrete cylinder diameter×stroke mm Φ140×1000
Hopper capacity L 400
Outlet diameter mm Φ150
Electric Motor
Electrical engineering power KW 37
Rotate speed r/min 1480
Circuit type Open circuit
Pumping system pressure MPa 26
Mixing system pressure MPa 6-8
Capacity of oil tank L 260
Max. Theoretical Vertical/Horizontal Conveying Distance m 120/300
Max. aggregate diameter mm Slick/scree:10/20
Inside diameter of delivering pipe mm Φ100
Dimensions:length×width×height mm 4500x1750x1600
Total weight kg 3000
ABJZ40D Electric Mobile Concrete Mix Pump Philippines
ABJZ40D Electric Mobile Concrete Mix Pump

Max. theo. concrete output(L./H) M3/h 40
Mixer rated feed capacity m3 0.56
Mixer rated discharge capacity m3 0.45
Max.concrete pumping pressure(H./L.) MPa 10
Distribution valve type S  Valve
Concrete cylinder diameter×stroke mm Φ180×1000
Hopper capacity L 400
Outlet diameter mm Φ150
Electric Motor
Electrical engineering power KW 45
Rotate speed r/min 1480
Circuit type Open circuit
Pumping system pressure MPa 26
Mixing system pressure MPa 6-8
Capacity of oil tank L 370
Max. Theoretical Vertical/Horizontal Conveying Distance m 120/500
Max. aggregate diameter mm Slick/scree:40/50
Inside diameter of delivering pipe mm Φ125
Dimensions:length×width×height mm 4200x2300x3150
Total weight kg 4500

Mobile Mixer Pumps On-site In the Philippines

Mobile Diesel Mixing Pump ABJZ40C For Foundation Construction In Davao, Philippines

Mobile Mixing pump for construction in Davao

ABJZ40C Mobile Diesel Concrete Mixer Pump For Foundation Construction in the Philippines

ABJZ40C Mobile Concrete Mixer and Pump For House Construction In Cavite, Philippines

ABJZ40C Mobile Concrete Mixer Pump for House Construction

Aimix mobile concrete mixer with pump In Cavite

ABJZ40C Mobille Concrete Mix Pump for Houses Construction

ABJZ40C Mobile Pump Concrete for Factory Construction in Manila, Philippines

ABJZ40C Mobile Pump Concrete For Factory Construction
ABJZ40C Mobile Concrete Pump For Factory Construction
ABJZ40C Mobile Concrete Mix Pump for Construction

Mobile Trailer Pump

Compared with the mixer pump, the main function of the mobile concrete trailer pump is for pumping concrete mixture to where it is needed. Therefore, If you don’t need to mix the cement or you have already the machine that can mix the cement, you can consider selecting the mobile concrete trailer pump for sale. Aimix mobile pumpcrete has the characteristics of high pumping efficiency, simple operation, easy transportation, advanced components, and flexible investment. Besides, trailer pumps for sale in Aimix have wide capacity ranges from 30 m3/h to 80 m3/h. There are also diesel and electric concrete pumps for choice. The customers can choose the power or engine according to the working environment of construction sites.

ABT30 Mobile Trailer Concrete Pump
30m3/h Mobile Trailer Concrete Pump
ABT40 Mobile Concrete Pump for Sale Philippines
40m3/h Mobile Concrete Pump

ABT60 Mobile Concrete Pump Sale Philippines
60m3/h Mobile Concrete Pump
ABT80 Mobile Trailer Concrete Pump
80m3/h Mobile Trailer Concrete Pump

Items Units Perameters
ABT40C ABT60C ABT80C
whole  performance of machine Max. theo. concrete output(L./H) M3/h 40/26 67/45 84/45
Max.concrete pumping pressure(H./L.) MPa 10/8 13/7 16/7
Distribution valve type S  Valve S  Valve S  Valve
Concrete cylinder diameter×stroke mm Φ180×1200 Φ200×1650 Φ200×1800
Hopper capacity x feeding height L/mm 400/1100 800/1400 800/1400
Outlet diameter mm Φ150 Φ180 Φ180
Power system Diesel engine model Weichai Wechai Wechai
Diesel engineering power KW 82 129 176
Rotate speed r/min 2200 2200 2200
Hydraulic system Circuit type Open circuit Open circuit Open circuit
Pumping system pressure MPa 32 32 32
Mixing system pressure MPa 10 10 10
Capacity of oil tank L 370 560 560
Other parameters Max. Theoretical Vertical/Horizontal Conveying Distance m 120/500 180/1000 260/1200
Max. aggregate diameter mm Slick/scree:40 Slick/scree:40 Slick/scree:40
Inside diameter of delivering pipe mm Φ125 Φ125 Φ125
Dimensions:length×width×height mm 5000x1850x1700 5800x2000x1750 6300x2100x2350
Total weight kg 4500 6500 6900

Items Units Perameters
ABT40D ABT60D ABT80D
whole  performance of machine Max. theo. concrete output(L./H) M3/h 40/26 60/36 84/46
Max.concrete pumping pressure(H./L.) MPa 10/8 13/7 16/9
Distribution valve type S  Valve S  Valve S  Valve
Concrete cylinder diameter×stroke mm Φ180×1300 Φ200×1650 Φ200×1800
Hopper capacity x feeding height L/mm 400/1250 800/1400 800/1400
Outlet diameter mm Φ150 Φ180 Φ180
Electrical engineering power KW 45 90 110
Rotate speed r/min 1480 1480 1480
Hydraulic system Circuit type Open circuit Open circuit Open circuit
Pumping system pressure MPa 28 28 32
Mixing system pressure MPa 10 10 10
Capacity of oil tank L 370 560 560
Other parameters Max. Theoretical Vertical/Horizontal Conveying Distance m 120/500 160/800 200/1000
Max. aggregate diameter mm Slick/scree:40 Slick/scree:40 Slick/scree:40
Inside diameter of delivering pipe mm Φ125 Φ125 Φ125
Dimensions:length×width×height mm 4500x1750x1600 5500x2000x1750 5800x2100x2350
Total weight kg 3200 6000 6300

Choices Guidance:

If you just need it for house construction or road repairing construction, you can invest in a small concrete pump of about 30 m3/h. For factory houses, harbor, and low-rise building construction, it is better to use 40 ~ 60 m3/h. While, if it is applied for large construction projects, like big bridges, tunnels, and high-rise buildings, the customer can choose a large capacity of about 80 m3/h. Here are some Aimix mobile concrete pumps working on-site in the Philippines. Check them below.

Application of Mobile Trailer Pump in The Philippines

ABT30C Trailer Pump Working For Rural Construction In Manila, Philippines

ABT40C Diesel Trailer Concrete Pump for Warehouse Construction In The Philippines

ABT40C Diesel Trailer Concrete Pump for Warehouse Construction
ABT40C Mobile Trailer Concrete Pump for Warehouse Construction
ABT40C Mobile Concrete Pump for Warehouse Construction

ABT60C Concrete Pump Mobile For Bridge Construction in In Batangas, Philippines

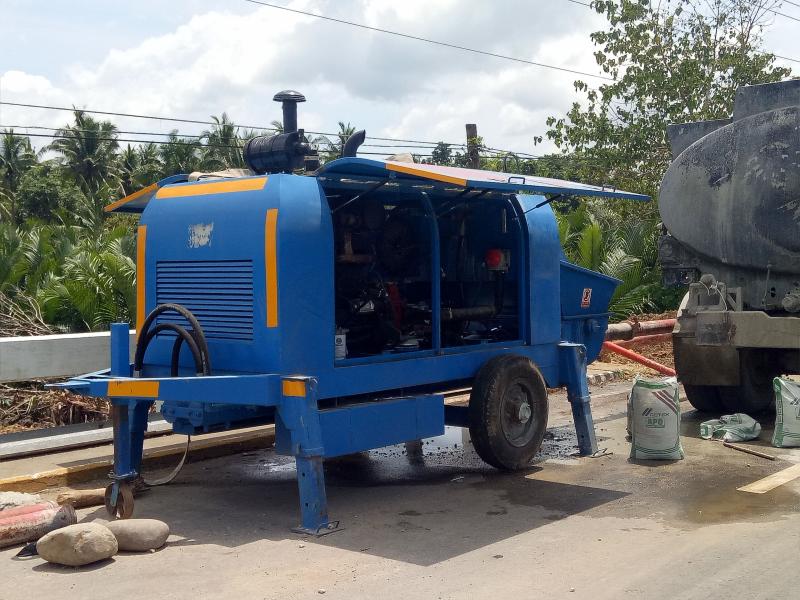

ABT60C Mobile Concrete Pump For Road Construction Philippines
ABT60C Mobile Pumpcrete For Road Construction
ABT60C Diesel Mobile Concrete Pump For Road Construction

Combination of Mobile Concrete Pumps and Other Machines

Nowadays, Aimix is dedicated to providing the best solutions for customers’ construction projects. As w all know, for investors who owned medium and large construction items, it is not enough to own a piece of concrete pumping equipment. There must be other machines to cooperate with the mobile concrete line pump for construction on-site. In order to solve customers’ provide better solutions for customers’ projects, Aimix has launched the perfect collaboration of the concrete pumps and self-loading concrete mixer.

self-loading concrete mixer and trailer pump

Usage of Self Loading Concrete Mixer with Pump

In the market, the combination is named after self loading concrete mixer with pump. It is well-received by customers in the Philippines. The main usage of self loading mixer is to produce a fresh concrete mixture. Then unload it into the mobile concrete pump machine. Last, it would be pumped along the concrete delivery pipelines through high pressure. Aimix self loading concrete mixer pump has been widely applied for rural and urban construction projects, especially for foundation, houses, buildings, and bridges construction. You can check the cases below!

ABT40C Mobile Concrete Pump + AS-3.5 Self Loading Mixer in Indonesia

ABT60C Mobile Pumpcrete and AS-4.0 Self Loader Mixer in Uzbekistan

Features of Aimix Mobile Concrete Pump for Sale

  • 1. It can reach maximize mobility and flexibility. With the tractor dragging, it can move among the construction sites conveniently even if in those narrow areas.
  • 2. The S valve mobile concrete pump can pump concrete mixture smoothly which has reduced the probability of pipe blockage. In addition, the S valve is made of high manganese steel with the performance of anti-wearing and anti-high pressure.
  • 3. The customers can customize the engine according to the actual demands. There are many famous brands for reference: such as Wechai, Deutz, Cummins……
  • 4. Glasses plate and cutting ring have used high hard anti-wearing alloy material, which can prolong service life.
  • 5. The hydraulic hose joint uses the brand of American Eaton to ensure safety and no leakage for the hydraulic system.
  • 6. High pressure on the outlet of the pump to make high building and long-distance concrete delivery.
  • 7. Main electrical elements adopt famous foreign brands to ensure reliability. In addition, the electric control system has greatly improved working efficiency. Because it is convenient to operate and maintain it through the control panel and remote controlling device.

S Valve
S Valve
Electric Control System
Electric Control System
Remote Control Device
Remote Control Device

What About Aimix Mobile Concrete Pump Price?

Before purchasing a concrete pump, all of the customers are concerned about the price of the concrete pump machine. As we all know, the prices are determined by various factors, such as capacity, engine, raw material, delivery method, delivery fee, brand, service, etc. Customers need to consider important factors that affect the price. In the market, Aimix mobile concrete pump price is relatively competitive and reasonable. Because we focused more on its quality, performance, and after-sales service. You can check the After-sales service introduction in the following paragraph.

According to type, output, and power, the overall prices are listed as follows(under the same capacity):

  • Diesel mixer pump price > electric mixer pump > diesel trailer pump > electric trailer pump

Mobile Concrete Pump Price Philippines

After-sales Service for Aimix Mobile Concrete Pump

Providing the best after-sales service is always Aimix’s pursuit. Therefore, we try our best to provide the best and most considerate service for customers in the Philippines. In Manila, Philippines, we have established a branch office. In this way can we provide a prompt response for our customers. In general, we would offer after-sales services, including transportation, installation, debugging, training, maintenance, and so on. Besides, Aimix Philippines Team also can pay a visit to our customers at the construction sites regularly, at least two times one year. You can offer your proposal to us. We will keep learning and improving our portable concrete pump for sale according to your feedback.

After-sales Service in the Philippines
After-sales Service for Mixer Pump

Any questions about after-sales service or others, welcome to contact us for solutions right now! Contact our sales through the following inquiry forms, fill out your requirements exhaustively, then we would reply to you with details as soon as possible!
