Mobile concrete batching plant for sale in the Philippines has integrated the components in one unit pulled by a towing vehicle. Thus, it has the biggest advantages of convenient transportation and quick installation. With movable tires, it is easier to move from one construction site to another. If Philippines customers’ projects are spread out in several different places, mobile concrete batching plant Philippines is the first choice. Here are some cases of Aimix’ mobile concrete plants: including installing, debugging and working on-site. Check cases first.
Working Sites of Aimix Mobile Concrete Batching Plants In The Philippines
1. Commissioning AJY35 Mobile Concrete Batching Plant In Ormoc, Philippines
2. AJY35 Mobile Concrete Plant Working in Manila, Philippines
3. Debugging AJY60 Mobile Batching Plant in Davao, Philippines
4. Installing AJT35 Drum Mix Mobile Concrete Plant In Cebu, Philippines
Different Types of Mobile Concrete Plants for Sale in The Philippines
In the Philippines, it is common to detect the ordinary mobile batching plant for sale that consists of main components, including concrete batching machine, belt, concrete mixer, cement silo, screw conveyor and control room. While, with the development of the market and and the increasing demands of customers, A new simple mobile mixing plant has come out. Check simple introductions of them.

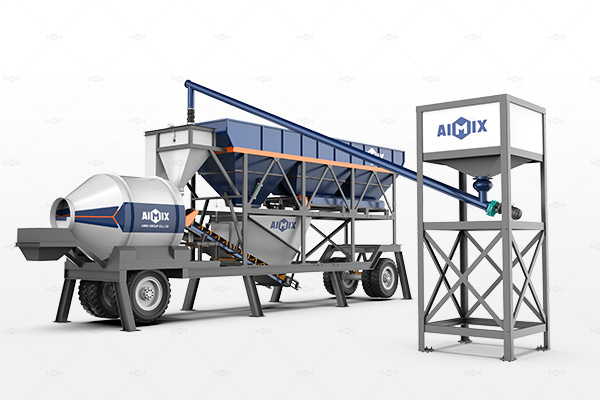

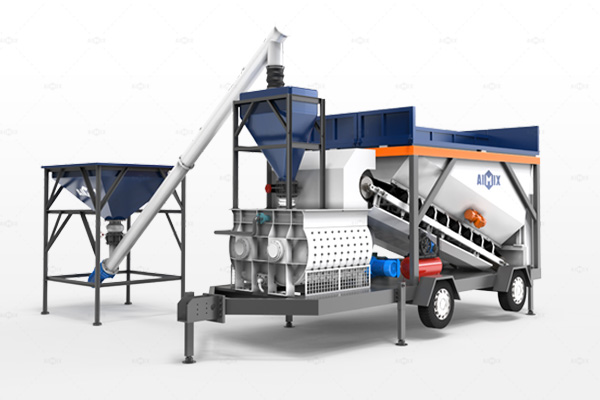

1. Ordinary Mobile Concrete Plant for Sale
The ordinary mobile batching plant can be moved via tractor dragging. Therefore, it can greatly reduce the occupation area. Even if in the slightly narrow area, our mobile concrete batching plant for sale can normally move and work. Besides, It only takes several days to transfer the mobile concrete batching plant for sale and install it. It can save your transportation time and shorten your construction period. In genera, it adopts belt transporting way to deliver the aggregate. It can greatly improve working efficiency. Aimix mobile batching plant capacity ranges from 25 m3/h to 75 m3/h. The models of mobile concrete batching plant for sale include AJY25, AJY35, AJY50, AJY60, and AJY75. Among them, AJY25 and AJY35 belong to small mobile concrete batching plant, which is suitable for small construction projects. Check models and specifications below.
| Parameters/Model | AJY-25 | AJY-35 | AJY-60 | AJY-90 |
| Theoretical Productivity (m³/h) | 25 | 35 | 60 | 90 |
| Mixer Discharging Volume (L) | 500 | 750 | 1000 | 1500 |
| Mixer Feeding Volume (L) | 800 | 1200 | 1600 | 2400 |
| Mixer Motor Power (kW) | 18.5 | 30 | 18.5×2 | 30×2 |
| Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 |
| Aggregate Material Quantity (m3) | 3×3 | 5×3 | 8×3 | 12×3 |
| Cycle Period (s) | 60 | 60 | 60 | 60 |
| Max. Aggregate Size (mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Cement Silo (t) (optional) | 50×1 | 50×1 | 100×1 | 100×1 |
| Aggregate Weighing Accuracy | ±2% | ±2% | ±2% | ±2% |
| Powder Material Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
| Water Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
| Additive Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 |
| Traction Type | Semi-trailer | |||
| Control Mode | Full Automatic Computer PLC Control | |||
| Power Supply | 220V/415V/440V/380V/, 50HZ/60HZ, 3Phase | |||
2. Mobile Concrete Batching Plant With Reversible Drum Mixer
The mobile batching plant is reversible drum concrete mixer is well-received in the Philippines market. Compared with the ordinary mobile concrete plant for sale, the standout difference exists the concrete mixer. It adopts the reversible drum type concrete mixer. Therefore, it is also named after reversible concrete batching plant. The drum mix type mobile concrete plant has simple design and compact structure. It is composed of several components, including concrete batching machine, simple cement silo, and reversible drum mixer. Aimix have exported over 10 sets of mobile concrete plant with reversible type drum concrete mixer. If you wanna get more information, contact our sales directly.
Characteristics Of Mobile Cement Plant
- 1. The operation interface is humanized and the working performance is reliable. Even if in all kinds of harsh environment, it still can run stably.
- 2. Aimix mobile concrete mixing plant for sale adopts twin shaft horizontal mixer and drum mixer with strong continuous working ability, complete stirring trajectory and strong stirring power.
- 3. High automatic degree makes the operation simpler and safer.
- 4. It has compact structure and novel design, which makes the occupation area smaller and appearance firmer.
- 5. Adopting shaft-end seal technology in twin shaft concrete mixer, it can greatly improve the service life of mixer machine.
- 6. Easy maintenance methods reduce the labor intensity and save the maintenance cost.
- 7. Equipped with high pressure automatic cleaning system, mini mobile concrete batching mixing plant has the functions of automatic alarm in the situation of oil shortage and over temperature.
Concrete Batching Plant Mobile Operation Precautions
When the customer uses the mobile rmc plant, the operator is a very important person during the process. Here are something the operator needs to notice.
1. He should control the production process of concrete. Under the premise of quality and quantity guaranteed, he need to finish the task on time. Meanwhile, he should keep the record of production to avoid the mistakes.
2. In the process of production, once there is a problem with the mobile plant concrete, the operator need to repair the machine in time. Check the inside of the cement weighing system at the right time, and if find the lump, he should clean immediately to avoid the error of cement measurement.
3. After mixing, he should clean the mixer machine and check the equipment and record the condition of mobile concrete batching plant China in time. Moreover, he needs to check the every component every week to ensure that the portable concrete plant is in a good condition. If detect the error, he should adjust in time.
All in all, it is necessary for operators to regular check and maintain the mobile batching plant concrete. It not only can save maintenance costs, but prolong the service life of mobile batch plant concrete.
What About Mobile Concrete Batching Plant Price
Compared with large stationary concrete batch mix plant, mobile concrete batch mix plant has smaller volume and lighter weight. Therefore, small occupation area will save your cost of construction site. Short transportation time can save your initial investment cost. In addition, modular design makes the cleanness and maintenance more convenient and easier. Simple maintenance can save your maintenance fees. Of course, considering the mobility, the production capacity of mobile concrete batching plant for sale is below 90 m3/h. Therefore, if you are in the early stage of investment, you can consider investing in one because mobile batching plant price is relatively affordable.
What Should Be Considered Before Purchasing Mobile Concrete Plant?
For investors, it is important to buy a good mobile batching plant for business. However, they should consider a lot of several aspects and weigh pros and cons. Here are some what he should be taken into account.
1. Construction Site Selection and Capacity
The site selection is one of the important factors to be considered when choosing one. Here are some tips should know in advance:
- The size of construction site
- Size of the concrete plant?
- Quantity of concrete needed for the project?
2. Reliable Machine
The reliable machine can produce high quality concrete mixture. Therefore, it is necessary to get a reliable one for trustworthy mobile batching plant manufacturer. Take into consideration the following aspects:
- Check the features and characteristics of different ready mix concrete plants
- Customization parts
- Analyze the concrete plant specifications whether to meet requirement
3. Cost Analysis
It is important to estimate the cost of investing a mobile batching plant that is within your budget. Here are what you should consider:
- Shipping fees
- Installing cost
- Maintenance cost
- Site preparation cost
4. Main Host Choice
The host of the mobile concrete batching plant must be selected after careful inspection. You have to look for the following properties:
- Concrete mixer to produce high-quality concrete
- Strong overload capacity
- High production efficiency
- The adaptability to the mixing of various materials
5. Strength of Mobile Concrete Batching Plant Manufacturers
It is vital to opt for the manufacturer who is professional and reliable. The customer should consider several aspects of manufacturer:
- Advanced technology
- Quality of materials to manufacture the equipment
- Considerate After-sales service
- Valuable Customer reviews
Based on above tips, you are bound to buy ideal equipment in the market. You also can choose Aimix brand concrete plant for sale. We are one of reliable concrete plant manufacturers in China. Our concrete plants have covered all over the world, countries including the Philippines, Indonesia, Malaysia, Singapore, Thailand, Vietnam, Myanmar, Pakistan, Uzbekistan, Bangladesh, Sri Lanka, Russia, Kenya, Nigeria, South Africa, Canada, USA, UK, France, Germany, Turkey, etc. If you intend to invest in Aimix mobile concrete plant for sale, welcome to contact us for latest concrete plant price! Contact us available through email, tel, and WhatsApp!
