AIMIX Batching Plant In The Philippines

Concrete Batching Plant For Sale

Concrete batching plant for sale Philippines provided by our Aimix Group can produce high-quality and fresh concrete in batch. Nowadays, it plays a significant role in the construction industry in the Philippines for these projects, such as buildings, houses, bridges, roads, highways, harbors, and water conservancy…… Therefore, Customers or contractors can invest in one for business with considerable profits. Let’s get details of Aimix concrete plants for sale below.

Aimix Concrete batching plant for sale Philippines

Type of Aimix Concrete Batching Plant for Sale

In order to meet the different requirements of clients in the Philippines, Aimix Group mainly provides two types of batching plants for sale. One is the stationary concrete plant; the other one is the mobile concrete plant for sale. Check each of them below.

Mobile Concrete Mixing Plant

Mobile concrete plant for sale is mainly installed on a trailer, which is convenient to transport. Because of the trailer, clients can easily move the mobile concrete plant from one site to another, which can greatly shorten transportation time and save costs. If the construction project has a short construction period or projects are scattered, a mobile one is more suitable. Moreover, the structure of the mobile concrete batching plant for sale is simple, it just needs to take several hours to disassemble and install. Therefore, customers prefer to purchase this kind of concrete plant for construction projects. In Aimix, there are several capacities for choices: 25 m3/h, 35 m3/h, 60 m3/h, and 75 m3/h. Models are AJY25, AJY35, AJY60 and AJY75.

AJY25 Mobile Concrete Batch Plant For Sale Philippines
AJY25 Mobile Concrete Batch Plant For Sale
AJY35 Mobile Concrete Plant
AJY35 Mobile Concrete Plant
AJY60 Mobile Batching Plant
AJY60 Mobile Batching Plant

Parameters/Model AJY-25 AJY-35 AJY-60 AJY-90
Theoretical Productivity (m³/h) 25 35 60 90
Mixer Discharging Volume (L) 500 750 1000 1500
Mixer Feeding Volume (L) 800 1200 1600 2400
Mixer Motor Power (kW) 18.5 30 18.5×2 30×2
Discharging Height (m) 3.8 4.1 4.1 4.1
Aggregate Material Quantity (m3) 3×3 5×3 8×3 12×3
Cycle Period (s) 60 60 60 60
Max. Aggregate Size (mm) 80/60 80/60 80/60 80/60
Cement Silo (t) (optional) 50×1 50×1 100×1 100×1
Aggregate Weighing Accuracy ±2% ±2% ±2% ±2%
Powder Material Weighing Accuracy ±1% ±1% ±1% ±1%
Water Weighing Accuracy ±1% ±1% ±1% ±1%
Additive Weighing Accuracy ±1% ±1% ±1% ±1%
Installation Power (kW) ≈65 ≈75 ≈100 ≈140
Traction Type Semi-trailer
Control Mode Full Automatic Computer PLC Control
Power Supply 220V/415V/440V/380V/, 50HZ/60HZ, 3Phase

Stationary Concrete Plant

Compared with mobile ones, it is obvious that the flexibility of the stationary batching plant is relatively poor. Because it is installed and fixed on-site generally. Due to its wide range of capacities from 25 m3/h to 180 m3/h, it has been divided into skip hoist type and belt conveyor type according to the feeding way of aggregate material. Check two types of stationary concrete batch plants for sale below.

Skip Hoist Concrete Mixer Plant

Skip hoist-type concrete batching plants for sale in Aimix include AJ25, AJ35, AJ50, and AJ75. It conveys the materials by hopper, which greatly shortens the distance from the concrete batching machine to the mixer machine. Thus, the short feeding distance can reduce the whole working period. In addition, the skip hoist type batch plant for sale has a smaller occupation area, saving your construction site cost. If the customer purchases the cement batching plant for sale for his own project, he can consider the skip hoist type. The biggest benefit is its small investment cost. Even if the customer doesn’t have too much budget, he also can afford it.

AJ25 Stationary Concrete Batching Plant
AJ25 Stationary Concrete Batching Plant
AJ35 Stationary Batching Plant
AJ35 Stationary Batching Plant

AJ50 Stationary Concrete Plant
AJ50 Stationary Concrete Plant
AJ75 Concrete Plant for Sale Philippines
AJ75 Concrete Plant for Sale

Parameters/Model AJ-25 AJ-35 AJ-50 AJ-75
Theoretical Productivity (m³/h) 25 35 50 75
Mixer Discharging Volume (L) 500 750 1000 1500
Mixer Feeding Volume (L) 800 1200 1600 2400
Mixer Motor Power (kW) 18.5 30 18.5×2 30×2
Discharging Height (m) 3.8 4.1 4.1 4.1
Aggregate Material Quantity (m3) 3×3 5×3 8×3 12×3
Cycle Period (s) 72 72 72 72
Max. Aggregate Size (mm) 80/60 80/60 80/60 80/60
Cement Silo (t) (optional) 50×1 50×1 100×1 100×2
Aggregate Weighing Accuracy ±2% ±2% ±2% ±2%
Powder Material Weighing Accuracy ±1% ±1% ±1% ±1%
Water Weighing Accuracy ±1% ±1% ±1% ±1%
Additive Weighing Accuracy ±1% ±1% ±1% ±1%
Installation Power (kW) ≈65 ≈75 ≈100 ≈140
Control Mode Full Automatic Computer PLC Control
Power Supply 220V/415V/440V/380V/, 50HZ/60HZ, 3Phase

Belt Conveyor Concrete Mix Plant

Belt conveyor type of stationary concrete batch plant for sale consists of AJ60, AJ90, AJ120, and AJ180. The production capacity of the belt conveyor type plant is above 60 cubic metres per hour. Therefore, it is more appropriate for large size of construction projects. What’s more, the belt conveyor type plant has tight sealing, which can produce higher quality concrete. If the customer wants to buy a batching plant for sale to produce commercial concrete, a belt conveyor type plant is the best choice. It also has the features of reliable performance, strong adaptability, and high return on investment.

AJ60 Belt Concrete Batch Plant for Sale
AJ60 Belt Concrete Batch Plant for Sale
AJ90 Stationary Concrete Plant for Sale
AJ90 Stationary Concrete Plant for Sale

AJ120 Concrete Batching Plant
AJ120 Concrete Batching Plant

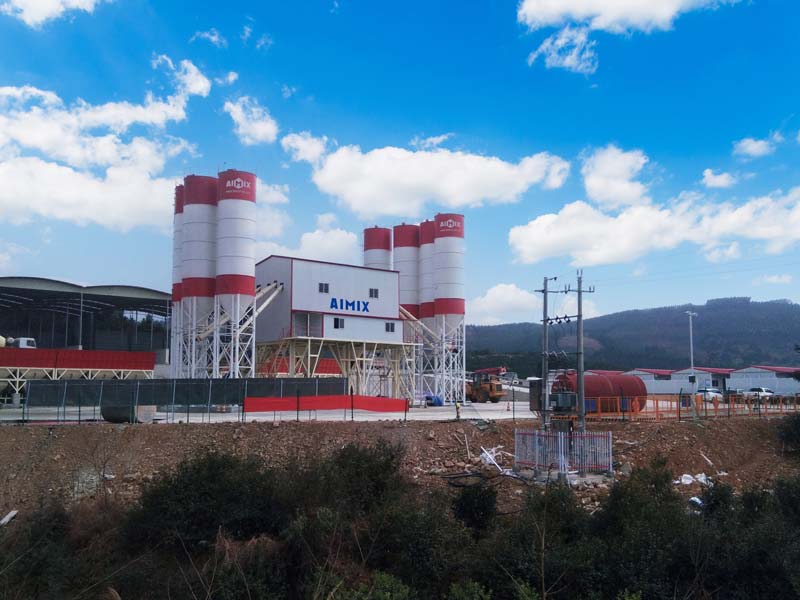

AJ180 Concrete Batch Plant for Sale
AJ180 Concrete Batch Plant for Sale

Parameters/Model AJ-60 AJ-90 AJ-120 AJ-180 AJ-240
Theoretical Productivity (m³/h) 60 90 120 180 240
Mixer Discharging Volume (L) 1000 1500 2000 3000 4000
Mixer Feeding Volume (L) 1600 2400 3200 4800 6400
Mixer Motor Power (kW) 18.5×2 30×2 37×2 55×2 75×2
Discharging Height (m) 4.1 4.1 4.3 4.3 4.3
Aggregate Material Quantity (m3) 7×4 15×4 15×4 20×4 20×4
Cycle Period (s) 60 60 60 60 60
Max. Aggregate Size (mm) 80/60 80/60 80/100 80/100 80/100
Cement Silo (t) (optional) 2×100 3×100 4×100 4×100 4×100
Aggregate Weighing Accuracy ±2% ±2% ±2% ±2% ±2%
Powder Material Weighing Accuracy ±1% ±1% ±1% ±1% ±1%
Water Weighing Accuracy ±1% ±1% ±1% ±1% ±1%
Additive Weighing Accuracy ±1% ±1% ±1% ±1% ±1%
Installation Power (kW) ≈110 ≈160 ≈220 ≈290 ≈340
Control Mode Full Automatic Computer PLC Control
Power Supply 220V/415V/440V/380V/, 50HZ/60HZ, 3Phase

Twin Shaft Mixer Batching Plant VS Drum Mixer Batching Plant

Twin shaft mixer batching plant is the above-mentioned mixing plant and is also common in the Philippines market. Now, a new type of compact cement mixing plant for sale is popular. As the name implies, the biggest difference between them is the type of concrete mixer. The ordinary concrete mixer plant for sale uses a twin shaft concrete mixer to blend concrete mixture; while the drum type concrete plant adopts a reversible drum mixer to mix the mixture. Generally, the whole configuration of the twin shaft mixer batch plant is higher than the drum one. Accordingly, the price of twin shaft mixer concrete plant is a little higher than the drum concrete plant. Therefore, if the customer has a lower budget and wants to buy a cheaper one, he can consider buying the compact reversible drum concrete batching plant.

Twin Shaft Mixer Batching Plant
Twin Shaft Mixer Batching Plant
Aimix Drum Mixer Batching Plant
Drum Mixer Batching Plant

Working Sites of Aimix Concrete Mixing Plants For Sale

Until now, Aimix Group has exported countless units of concrete plants to the Philippines market. Now, Aimix batching plant for sale Philippines has covered in these regions and cities: Quezon, Davao, Cebu, Mindoro, Dagupan, Cavite, Sorsogon, Calamba, Batangas, Zamboanga, Surigao, Bacolod, Pasig, Antipolo, Makati, Bacoor, Makati, Muntinlupa, Caloocan, Taguig, Antipolo, etc. You can check some cases below.

Skip Hoist Type

Belt Type

Drum Type

Drum Mix Mobile Concrete Plant in The Philippines
Drum Mix Mobile Concrete Plant in The Philippines

Main Components of Batch Plants For Sale

In general, the concrete plant for sale consists of five systems: material storage system, material conveying system, material weighing system, concrete mixing system, and electric control system. There are several important components among the five systems. Check the components below.

1. Concrete batcher. The concrete batching machine has two functions: storing and weighing. The concrete batcher can weigh the material accurately according to the ratios, which can greatly improve the quality of the concrete mixture.

2. Feeding Hopper and Belt. Both of them have the same function of transporting the material from the concrete batching machine to the waiting hopper.

3. Cement Silo. In general, we have manufactured bolted cement silos to match the concrete batching plant. On the one hand, it can save space for transportation. On the other hand, it can disassemble and assemble easily.

Concrete Batching Machine
Concrete Batching Machine
Belt Conveyor for Concrete Plant
Belt Conveyor
Cement Silos for Concrete Plant
Cement Silos

4. Screw conveyor. It uses to convey the cement and fly ash to the powder weighing system.

5. Concrete mixer. Aimix has two types of concrete mixers to match concrete batch plants for sale: twin shaft concrete mixer and drum concrete mixer. Both of them can mix high-quality concrete mixture.

6. Electric control system. There is fully automatic and semi-automatic type concrete batching plant sale. Customers can control the whole working process through the control panel. It is easy and safe to operate and maintain.

Screw Conveyor
Screw Conveyor
Twin Shaft Concrete Mixer
Concrete Mixer
Control Panel
Control System

Why Choose Aimix Concrete Mix Plant For Sale in The Philippines?

  • 1. Aimix Group, one of reliable and professional concrete plant manufacturers and suppliers in the Philippines, is headquartered in China.
  • 2. CE and ISO certificates. Aimix has gained CE and ISO certificates to ensure the quality of ready mix concrete plant for sale.
  • 3. Professional teams. Aimix has professional teams that are composed of various departments, such as R & D department, E-commerce department, after-sales service department, sales department……
  • Aimix Online Sales Team In The Philippines
    Aimix Staff
  • 4. More than 80 sets of concrete plants are normally working now in the Philippines. If necessary, we would like to guide you to visit them on sites.
  • 5. Compared with concrete plant prices from other manufacturers, ours are more competitive and reasonable.
  • 6. We have established branch office in Manila, Philippines. It is located in Manila. Therefore, we have resident local sales and engineers there to provide support.
  • 7. Aimix promises to provide customers with 7*24h after-sales online service. You can contact us any time.

Aimix Considerate After-sales Service in The Philippines

Aimix is committed to providing considerate after-sales service for Philippines customers. The after-sales service business is operated by professionals in engineering and sales. We offer services to ensure the equipment continuously works in the best condition and ensure safe and stable operation through the upgrading services.

Providing Support Through Its Life

We would help solve various kinds of issues that occur in maintenance, management, and operations throughout the concrete batching plant life. As necessary, we propose improvements and modifications to continuously provide high-value-added construction solutions to customers.

Aimix Mobile Concrete Batching Plant Sale

Offering Spare Parts Timely

To quickly provide the important core components for customers, Aimix has built an overseas warehouse in the Philippines. In this way can customers get the parts as soon as possible.

Free Operation Training

Aimix after-sales teams in the Philippines would help personnel engaging in their day-to-day operations better understand the concrete batching plant leads to optimal, stable operations. If necessary, we provide online technical training for customers.

After-sales Service for Concrete Plant for Sale in The Philippines

Contact Us

If you are interested in Aimix concrete mixing plant for sale, welcome to contact us for the latest price right now! Contact us through email, tel, or WhatsApp! Then our sales in the Philippines would reply to you as soon as possible!
