ABM-4S automatic brick machine

Automatic Brick Making Machine

The automatic degree of automatic brick making machine is higher than other types of brick making machine. Adopting advanced control system and technologies, automatic block making machine has the characteristics of easy operation, high production output, less labor intensity and cost, easy maintenance, and excellent performance. Automatic brick making machines can produce different shapes and sizes of bricks, such as hollow bricks, interlocking bricks, solid bricks, paving blocks, and so on. As the application of bricks becomes wider, the Automatic brick making machine is also more popular in the Philippines.

Latest News – ABM-4S Automatic Block Making Machine Is Shipping To the Philippines On February 2020

ABM-4S automatic block making machine to Philippines
ABM-4S to Philippines

ABM-4S automatic block making machine to Philippines
ABM-4S automatic block making machine to Philippines
ABM-4S automatic block making machine to Philippines

Main technical parameters of hot model – ABM-4S Automatic Block Making Machine

ABM-4S Automatic Brick Making Machine
ABM-4S Automatic Brick Making Machine
Brick Size(L*W*H) Cycle molding Pcs/Hr
hollow brickshollow bricks 390*190*190 24-26s 580
solid blockssolid blocks 240*115*90 22-25s 1400
perforated bricksperforated bricks 240*115*53 22-25s 3300

Overall Dimension: 4800*1600*2600mm
Rated pressure: 15MPa
Main vibration form: Platform vibration
Vibration frequency: 50-70HZ
Pallet size: 850*550mm
Molding cycle: 25(s)
Main Motors Power: 20.6KW


The feedback video in In Rizal, Philippines of ABM-4S automatic brick machine from customs

Fully automatic type VS semi-automatic type block making machine

According to the automatic degree, an automatic brick making machine can be divided into a fully automatic brick machine and semi-automatic brick making machine. You can learn their differences from the following aspects. A fully automatic brick making machine is controlled by the PLC control system. The operator can operate the machine by the PLC, which is more accurate and safer. After the workers pour the raw materials into the batching machine to weigh, the fully automatic block making machine can finish the whole process from mixing to moulding. You just need four to five workers to operate the fully automatic brick making plant.

A Complete Fully Automatic Type Block Making Machine Flow Chart
A Complete Fully Automatic Type Block Making Machine Flow Chart

If you want to improve the production output of an automatic brick machine or you need more bricks in a period, the fully automatic brick making plant is suitable for you.

ship brick machine to philippines
ship our automatic brick making machine to Philippines

The Semi-automatic block making machine is controlled by the button. When you operate the machine, you need to press the corresponding button and then the semi-automatic block making machine can respond accordingly. The biggest advantage of semi-automatic block making machine is lower investment cost compared with the fully automatic brick machine for sale. If you don’t have too much investment capital or you have plenty of workers, you can consider the semi-automatic brick machine for sale.

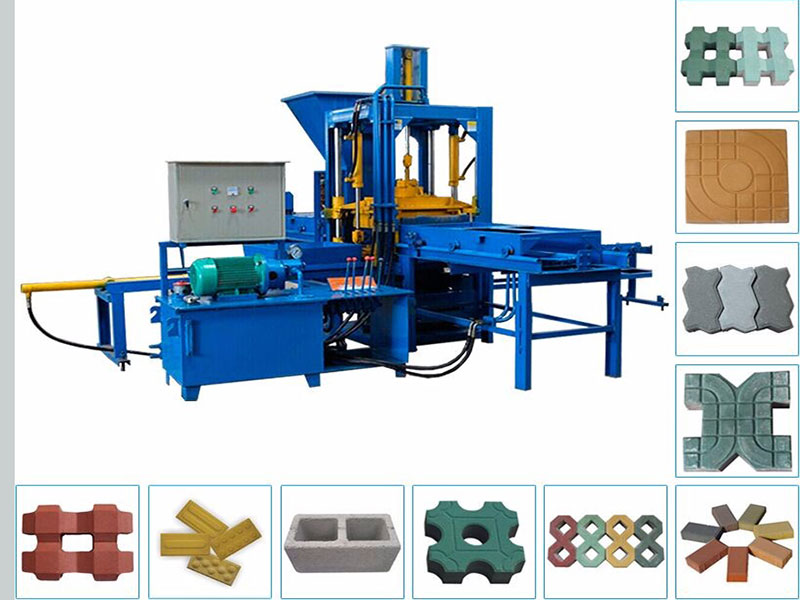

ABM3S Semi automatic block making machine
ABM3S Semi automatic block making machine

AMB3S Main technical parameters

Overall Dimension: 7100*1500*3000mm
Rated pressure: 16MPa
Main vibration form: Platform vibration
Vibration frequency: 4500-5100(r/min)
Pallet size: 850*680mm
Molding cycle: 15-25(s)
Overall power: 51KW

Theoretical Bricks production capacity

Brick Size(L*W*H) Pcs/Mould Cycle Molding Pcs/Hr
hollow bricks 390*190*190 3 15-20s 540-720
solid block 200*100*60 10 15-25s 1500-1800
brick 225*112.5*60 8 15-25s 1200-1400
solid blocks 240*125*75 12 15-20s 2160-2800


The automatic brick making machine is our hot sale product in the Philippines. The models of automatic block machine are ABM series, including ABM-4S, ABM-5S, ABM-6S, ABM-8S, ABM-10S, ABM-12S, etc. When you plan to purchase an automatic brick manufacturing machine, you should consider the following questions: How many bricks do you need in one day? How many types of raw materials do you need? What types of bricks do you want to produce? Learn these questions to pick up the right model of automatic brick making machine china.

Other hot models of the fully automatic brick making machine

ABM6S
ABM6S

ABM6S Theoretical Bricks production capacity

Brick Size(L*W*H) Pcs/Mould Cycle Molding Pcs/Hr
brickspaving blocks 200*100*60 21 18-23s 3287-4200
bricksinterlocking bricks 200*160*60 12 18-23s 1878-2400
brickssoild blocks 240*125*75 32 15-17s 6500-7800
bricks
hollow bricks
390*190*190 6 20-25s 864-1080

ABM8S
ABM8S

ABM8S Theoretical Bricks production capacity

Brick Size(L*W*H) Pcs/Mould Cycle Molding Pcs/Hr
bricks 200*100*60 28 18-23s 4382-5600
bricks 200*160*60 20 18-23s 3130-4000
bricks 240*115*53 42 15-17s 9000-10000
bricks 390*190*190 8 20-25s 1150-1440


ABM10S
ABM10S

ABM10S Theoretical Bricks production capacity

ABM10S Theoretical Bricks Production Capacity

ABM12S Auto block making production line
ABM12S

ABM-12S Theoretical Bricks production capacity

Brick Size(L*W*H) Pcs/Mould Cycle Molding Pcs/Hr
bricks 200*100*60 38 18-23s 5948-7600
bricks 200*160*60 25 18-23s 3913-5000
bricks 240*115*53 62 15-17s 12700-14400
bricks 390*190*190 12 20-25s 1728-2160

Routine maintenance of automatic brick making machine

Here are some useful tips for maintenance methods for you. If you want to know more, welcome to contact us at any time.

1. Keep the hydraulic system, oil pipeline and hydraulic station clean;

2. Before starting the automatic bricks making machine, you should check the clutch, brake, wire rope and other accessories to ensure its good;

3. In the process of using the mixer machine, it must be placed in a strong place, using a bracket or a leg support frame stability, not to replace the tire support;

4. When the hopper is raised, it is strictly prohibited for anyone to pass or stay under the hopper. After the work, the hopper shall be fixed before leaving;

5. Timely check whether the screw is loose, if there is any abnormality, stop the machine and adjust it.

The right maintenance method can reduce the machine failure rate and increase its service life. If you want to look for a trustworthy automatic block making machine manufacturers in the Philippines, please don’t hesitate to choose our Aimix Group.
