The hot mix asphalt plant is a kind of asphalt machinery that needs to heat the raw materials to produce a high-quality asphalt mixture. Different from cold mix asphalt plant, drying and heating is an important step for the hot mix asphalt batch plant. Generally, an asphalt hot mix plant consists of a cold aggregate supply system, drum dryer, hot aggregate elevator, vibrating screen, weighing system, mixing system, dust collector system, bitumen supply system, control system, etc. If you want to produce the asphalt mixture in batch, batch type hot mix plant is a good choice for you. Learn more information from this article.
batch type hot mix plant
ALQ stationary series batch type
| Model | ALQ40 | ALQ60 | ALQ80 | ALQ100 | ALQ120 | ALQ160 | ALQ200 | ALQ240 | ALQ320 |
| Output | 40t/h | 60t/h | 80t/h | 100t/h | 120t/h | 160t/h | 200t/h | 240t/h | 320t/h |
| Cold Aggregate Feeding System | |||||||||
| Hopper Capacity | 4×4.5m³ | 4×6.5m³ | 4×7.5m³ | 4×7.5m³ | 4×7.5m³ | 5×12m³ | 5×12m³ | 5×12m³ | 6×15m³ |
| Collect Belt Capacity | 60t/h | 80t/h | 100t/h | 120t/h | 140t/h | 200t/h | 220t/h | 280t/h | 360t/h |
| Aggregate Dryer | |||||||||
| Dryer Size | φ1.2m×5.2m | φ1.5m×6m | φ1.5m×6.7m | φ1.65m×7m | φ1.8m×8m | φ2.2m×9m | φ2.6m×9m | φ2.6m×9.5m | φ2.8m×10.2m |
| Dryer Capacity | 60t/h | 80t/h | 100t/h | 120t/h | 140t/h | 180t/h | 240t/h | 260t/h | 360t/h |
| Fuel Consumption | 70-300kg/h | 100-400kg/h | 120-600kg/h | 150-1000kg/h | 150-1000kg/h | 150-1400kg/h | 180-1800kg/h | 180-1800kg/h | 260-2500kg/h |
ALYQ Mobile series batch type
| Model | ALYQ60 | ALYQ80 | ALYQ100 | ALYQ120 | ALYQ160 |
| Output | 60t/h | 80t/h | 100t/h | 120t/h | 160t/h |
| Cold Aggregate Feeding System | |||||
| Hopper Capacity | 4×6.5m³ | 4×7.5m³ | 4×7.5m³ | 4×7.5m³ | 5×8m³ |
| Collect Belt Capacity | 80t/h | 100t/h | 120t/h | 140t/h | 180t/h |
| Aggregate Dryer | |||||
| Dryer Size | φ1.5m×6m | φ1.5m×6.7m | φ1.65m×7m | φ1.8m×8m | φ1.9m×9m |
| Dry Capacity | 80t/h | 100t/h | 120t/h | 140t/h | 180t/h |
| Fuel Consumption | 100-400kg/h | 120-600kg/h | 150-1000kg/h | 150-1000kg/h | 150-1400kg/h |
ALYJ Mobile Simple series batch type
| Model | ALYJ10 | ALYJ15 | ALYJ20 | ALYJ30 | ALYJ40 | ALYJ60 | ALYJ80 | |
| Output | 10t/h | 15t/h | 20t/h | 30t/h | 40t/h | 60t/h | 80t/h | |
| Power | Fuel Oil | 48kw | 59kw | 68kw | 106kw | 132kw | 146kw | 186kw |
| Burning Coal | 67kw | 78kw | 91kw | 129kw | 170kw | 192kw | 262kw | |
| Cold Aggregate Feeding System | 3m³×3 | 3m³×3 | 3m³×3 | 5m³×3 | 5m³×3 | 5m³×3 | 5m³×4 | |
| Finihsed Asphalt Storage Bin | 2t | 5t | 5t | 9t | 9t | 9t | 20t | |

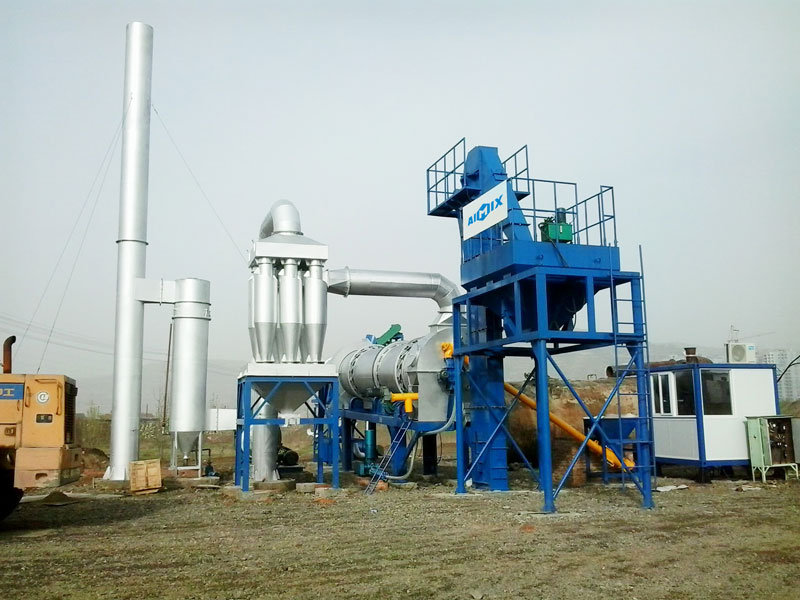

Drum type asphalt hot mix plant – ALT series
| Model | ALT20 | ALT40 | ALT60 | ALT80 | ALT100 | |
| Output | 20t/h | 45t/h | 60t/h | 80t/h | 100t/h | |
| Power | Fuel Oil | 34kw | 65kw | 105kw | 135kw | 170kw |
| Burning Coal | 40kw | 75kw | 120kw | 165kw | 200kw | |
| Cold Aggregate Feeding System | 3.5m³×1 | 4m³×4 | 4m³×4 | 6.5m³×4 | 6.5m³×4 | |
| Finihsed Asphalt Storage Bin | 3t | 3t | 7t | 7t | 9t | |
Features of hot mix asphalt plant
1. Produce a variety of asphalt mixtures, such as modified asphalt mixture, and colored asphalt mixture. These asphalt mixtures can be used for different projects, including highway construction, municipal road construction, airport construction, etc.
2. Different types can meet the needs of different customers. If you need to transport hot mix asphalt plant for sale frequently, mobile type asphalt plant is suitable for you. Or you can consider the stationary type plant.
3. Advanced control system. This makes the operation safer and easier. In addition, this can guarantee the accuracy of weighing, which can improve product quality.
4. A famous brand of spare parts. The imported famous brand of parts can not only reduce the failure rate of hot mix bitumen plant but also prolong its service life.
Hot mix asphalt batch plant in the Philippines and other countries
The bitumen hot mix plant has different models. According to our experience, the hot mix plant its production capacity is below 80t/h is popular in the Philippines. The main reason is the projects in the Philippines are not very big, so these models of hot asphalt mixing plants are enough, ALQ80, ALQ100, ALQ100, ALYQ60, ALYJ60… There are some pictures of our hot asphalt plant in the Philippines.
Benefits you can get from a reliable manufacturer
When you choose the asphalt hot mix plant manufacturers, maybe you can learn their information by these ways, searching the Internet, asking related friends, finding on the local area. Whichever way you choose, you should distinguish the strength of the hot mix plant manufacturers. As a professional hot mix asphalt plant manufacturer in the Philippines, our Aimix Group will spare no efforts to serve you better. Compared with other manufacturers, our unique strengths are as follows.
Better quality machine and more acceptable hot mix plant price. Our company has been accumulated over 35 years of production experience. Since our company was founded, our hot mix asphalt plant has been working for many different customers and won a good reputation. Our engineers strive to keep technological innovation, so our hot drum mix plant can better meet the needs of our customers. Moreover, we sell our hot mix asphalt plant directly. Therefore, you don’t worry about the agency fees at all. Choose our company, and you can get a better quality machine and a more reasonable asphalt hot mix plant price.
Branch office in Manila, Philippines. We set up our branch office in Manila, Philippines. This office is actually a Local Based Service Center. Meanwhile, our salesmen and engineers will work there all the time.
Deliver the spare parts in 12 hours. After purchasing the drum mix plant, you may worry that there is something wrong with the machine. Because we have a warehouse in the Philippines. So we can guarantee that we will deliver the spare parts that you need in 12 hours.
Go to your construction site in 24 hours. When you need our engineers to help you solve your problems, they will arrive at your construction site in 24 hours. This can not only save your downtime but also reduce your loss.
To sum up, our Aimix Group is a hot mix asphalt plant manufacturer that you can trust. Contact us to get a quotation now!
