Horizontal Cement Silo

Horizontal cement silo is also called low-level cement silo, Different from other types of cement silo, the shape of a horizontal silo is similar to the concrete batching machine. The horizontal silo for concrete has two main applications. One is to use as the supporting facilities of concrete batching plant, For a concrete batch mix plant, cement silo is a very important component, The horizontal silo and screw conveying pump can be used to deliver materials to various locations. The tank is easy to install and is an ideal bulk storage tank for mixing stations; Another is to store the bulk cement in different construction projects, which has been extended to many fields such as food, chemical industry, coal, etc., and can be used to store various bulk materials, such as fly ash, grain and so.

Horizontal Cement Silo in Our Factory
Horizontal Cement Silo in Our Factory

Our Horizontal Cement Silos Exported to Different Countries

Horizontal Silo to Philippines

Horizontal cement silo for sale machine
Transport the horizontal silo to Philippines
Horizontal type cement silo to Philippines
Horizontal type cement silo to Philippines

50 Ton Horizontal Silo with Blue Color to Malaysia

50 Ton Horizontal Silo to Malaysia
50 Ton Horizontal Silo to Malaysia
50 Ton Horizontal Silo to Malaysia
50 Ton Horizontal Cement Silo to Malaysia
50 Ton Horizontal Cement Silo to Malaysia

100 Ton Horizontal Cement Silo to Ivory Coast

100 Ton Horizontal Silo to Ivory Coast
100 Ton Horizontal Silo to Ivory Coast

Transport the horizontal silo to Ivory Coast
Transport the horizontal cement silo to Ivory Coast

Advantages of our horizontal silos

1. Our low-level cement silos adopt high-quality steel plate material and seamless welding technology to make the tank more durable.

2. The Horizontal silo for sale is coated with multiple layers of spray paint. And the bottom of silo is sprayed anti-corrosive paint, which makes the appearance more beautiful and not easy to corrosion.

3. Volume of our low level cement silo includes 30t, 50t, 80t, 100t, 200t, etc. Of course, we can customize the model and size of the low-level silo according to the customer’s requirements.

30t horizontal silo sale
30 Ton


50 Ton horizontal silo
50 Ton

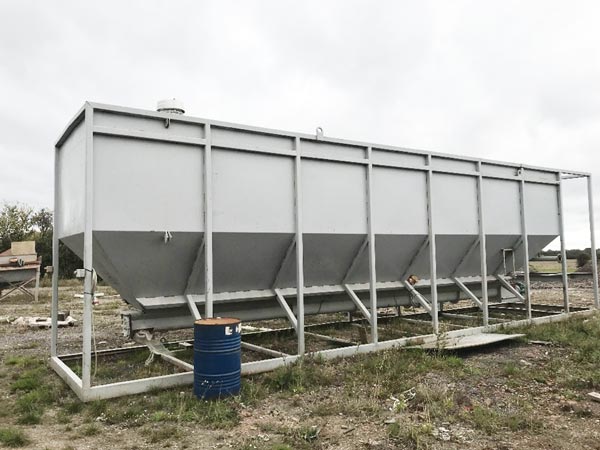

80t horizontal silo machine
80 Ton


100t horizontal cement silos
100 Ton


4. Our cement storage horizontal silo can be equipped with dust removal system to absorb some suspended particles. This can effectively reduce the material in the cement tank suspended particles overflow outside the tank, to reduce the pollution of the surrounding environment and to protect the health of workers.

5. Aimix low-level horizontal silos adopt standard modular production lines with short production cycles and fast delivery.

Parameter of Horizontal Silos

Model Tanker Diameter Tanker Height Tanker Total Height Matched mixer Matched screw conveyor
30Ton 2.6m 4.8m 12m JDC350 LSY219
50Ton 3m 5.4m 12m JS500 LSY219
80Ton 3m 9m 15.6m JS750 LSY219
100Ton 3m 11.4 18m JS1000 LSY219
150Ton 3m 13.5m 19m JS1000 LSY230
200Ton 4.5m 18.6m 25.2m JS1500 LSY230
300Ton 4.5m 24.6m 29.5m JS2000 LSY230

Why should you purchase the horizontal cement silos in the concrete industry?

As we all know, there mainly are three types of cement silo for sale on the market, namely, welded type, bolted type and horizontal silo. Different types of silo bins has their own features and advantages. Compared with other types of machine, you can get many benefits from the low level cement silo for sale.

First of all, it is easy to move. It is easy for horizontal silo to disassemble and install. So even if you need to transport it frequently, you don’t worry at all. The convenient movement will save your transportation time greatly. Moreover, horizontal silo for cement doesn’t have high requirements for site installation foundation. As long as the foundation is flat, you can install it.

AIMIX Horizontal Cement Silo in Factory
AIMIX Horizontal Cement Silo in Factory

Then, the height of horizontal silo for sale is lower than other types of silo bins. You can put it inside the production workshop. So you don’t need too large production factory, which can greatly save your construction site fees.

And, using low-level cement silo can save the cement package fees and ensure the quality of cement. The cost of bagged cement is slightly high, so you should store the cement by the horizontal type cement silo. It can greatly reduce your production costs. In addition, because the horizontal cement silo for sale is an enclosed bin, this can ensure that the quality of cement is not affected by the surrounding environment.

Finally, horizontal cement silos can be customized according to customer needs and applicable to enterprises of different sizes, so customers can use horizontal cement silos with different capacities to match different projects.

Other hot types of cement silo bins

Besides horizontal silo for sale, we also produce other types of cement silos, such as, welded type and bolted type. You can pick up one more suitable type of machine for your engineering.

2 Sets 100 Ton welded types of cement silos in Pakistan

100 Ton welded types of cement silos in Pakistan
100 Ton welded types of cement silos in Pakistan

100 Ton welded types of cement silos in Pakistan
100 Ton welded types of cement silos in Pakistan

100 Ton bolted type cement silo to australia

100 Ton bolted type cement silo to australia
100 Ton bolted type cement silo to australia

Daily maintenance is important

Daily maintenance is important for the horizontal mobile cement silo. Right, and regular maintenance will not only prolong its service life but also guarantee the quality of stored cement. For the horizontal silo for sale, the cleanness is a vital step. The low-cement cement silo mainly consists of a body of bin, level indicator, feeding tube, holder, dust catcher and so on.

aimix group cement silo factory
AIMIX cement silo factory

worker in cement silo factory
silo painting

workers in factory
produce the cement silo

Usually, you can use the water to clean the horizontal silo for concrete. That is not difficult. Pay special attention to lumps in the bin when cleaning. If lumps are present in the bin, remove them with a hammer or shovel before cleaning. What’s more, you also need to regularly check the cement bin clearance mechanism, fan operation and cement bin each sealing parts are normal, and develop the habit of regular replacement.

If you want to learn more information about the maintenance of horizontal cement silo, welcome to consult us. Looking forward to your message!
